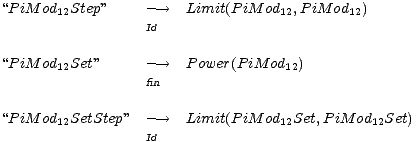

The affine symmetry e711 induces natural transformations of all three forms:
![@e711Step, @e711Set, @e711SetStep](../KlangArt99184x.png)
In
the case of the
Power type
Form PiMod12Set one has two natural choices to define
@e711Set – namely to choose either the image or the pre-image of a set under
@e711, but
in this case both coincide because
e711 is self-inverse. The same graph with two nodes
and one arrow can be loaded in three other ways, namely each time with one of the three
compound Forms at both nodes and the corresponding natural transformation at
its
arrow. The resulting diagrams are called:

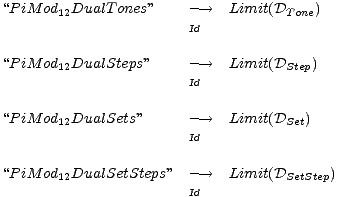

Defining the following Limit-Forms – having these Diagrams as their Coordinators –
enables us to discuss Harrison’s dual network of harmonic concepts and express it in
terms of suitable Denotators.
- Modal Duality: Major / Minor. The initial inversion e711 has
been chosen in such a way that the underlying diatonic scales of
C-Major and C-Minor are exchanged. This is expressed in terms of the
PiMod12DualSets-Denotator “DualScales”:
- Agents Discharge: 7-8 / 6-5: The typical leading tone-motion 7-8
is characterized in Harrison’s system as a discharge of the Dominant
agent into the
